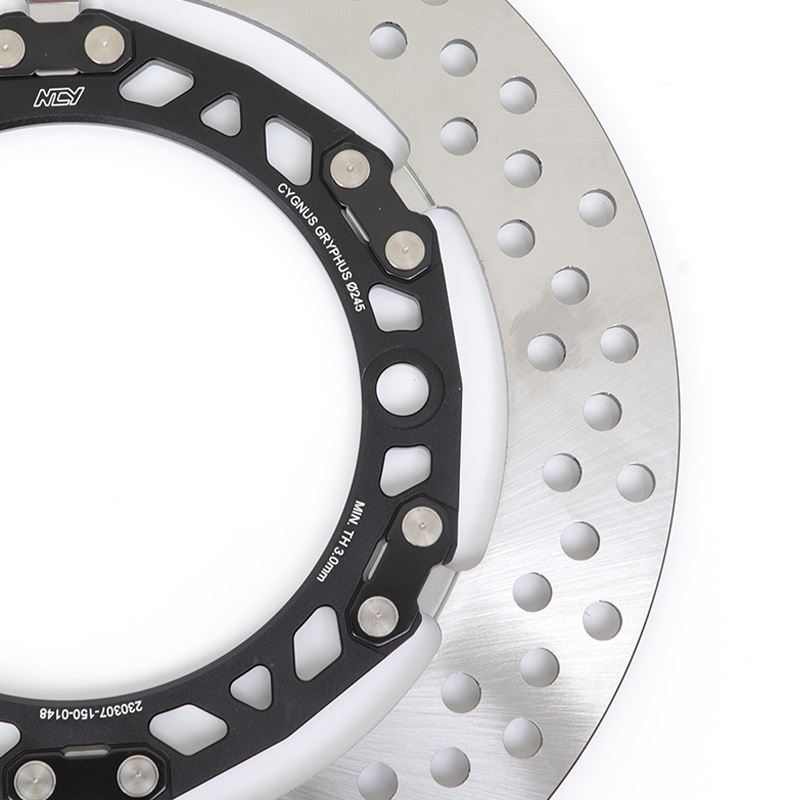

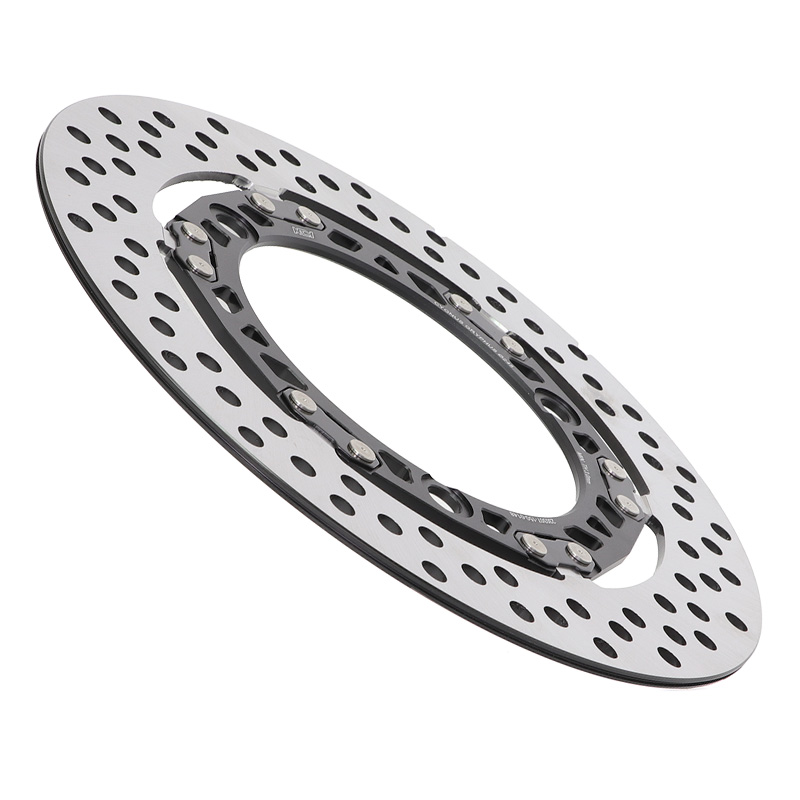

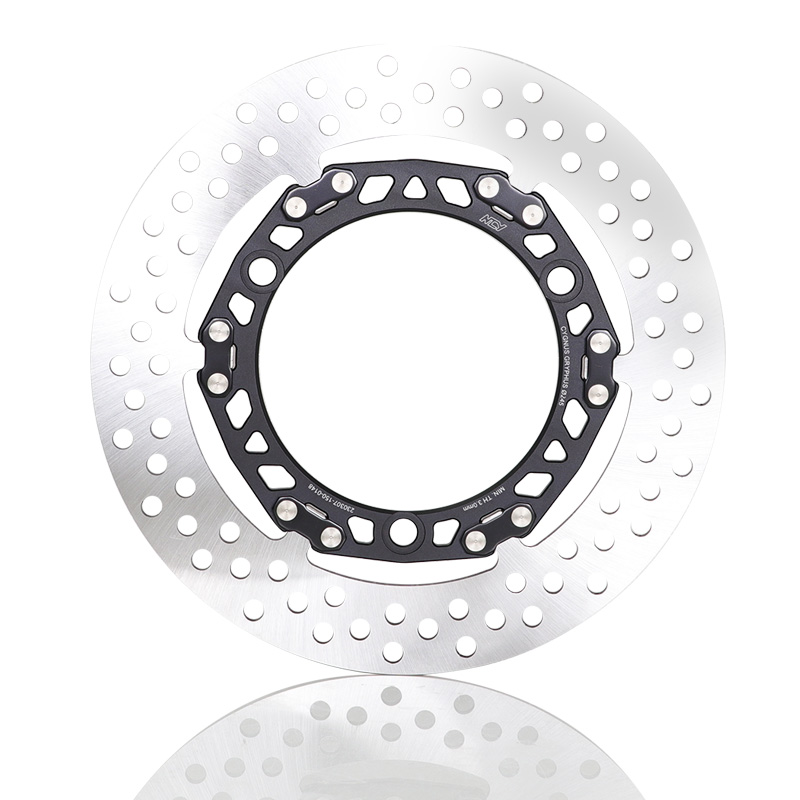

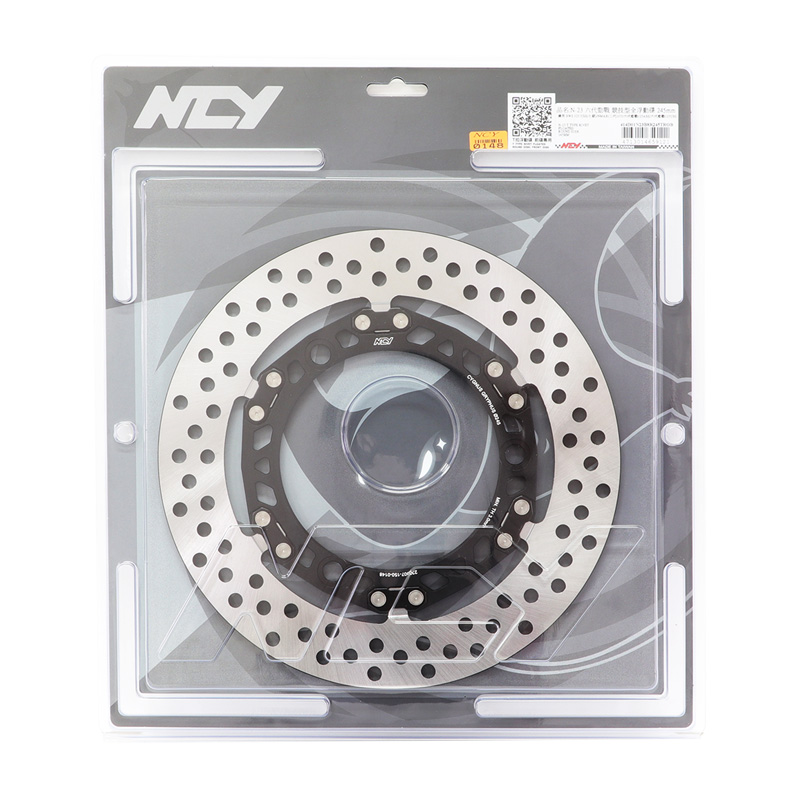

YAMAHA N-23 T Type Rivet Floated Round Disk 245mm For CYGNUS GRYPHUS 125 ABS
Code: 414D01N23B8R245TROB
Scale:

245mm

Class:
YAMAHA
< Domestic Models >
CYGNUS GRYPHUS 125 ABS
CYGNUS GRYPHUS 125 UBS
BWS 125 UBS
NMAX 155
< Foreign Models >
AEROX 155(ID)
NMAX 155 (ID)

1. Carrier is designed with high strength structure and made of high strength & light material aluminum 7075.

    Rotor is made of 410 stainless steel, special material for brake disk, from Japan.

    Heat treatment HRC 35~38, increasing hardness and wear resistance.

2. Improve brake pad rubbing and disk force unequally as braking.

3. Patented float buttons and double rivets structure design to get the big space floating.

    As thermal expansion, disk still keeps floating effectively, not easily deformed and braking steady.

4. Disk is designed with big space floating.

    As using, there will be some sound of metal knocking slightly.

    This is the normal condition.

    Please understand and accept above before purchasing.
